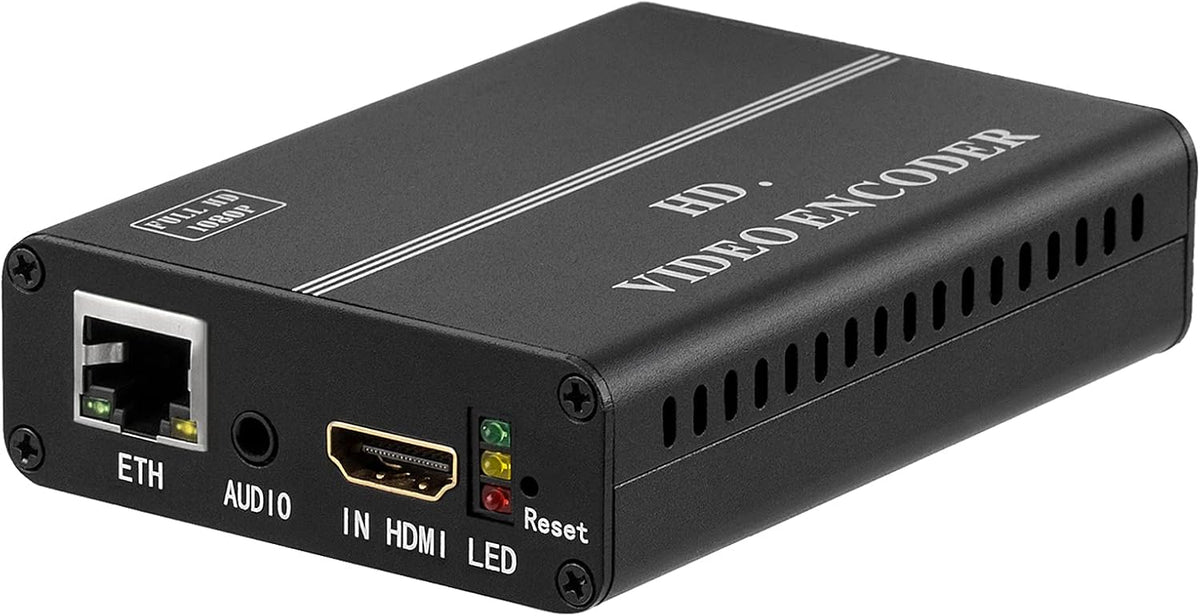

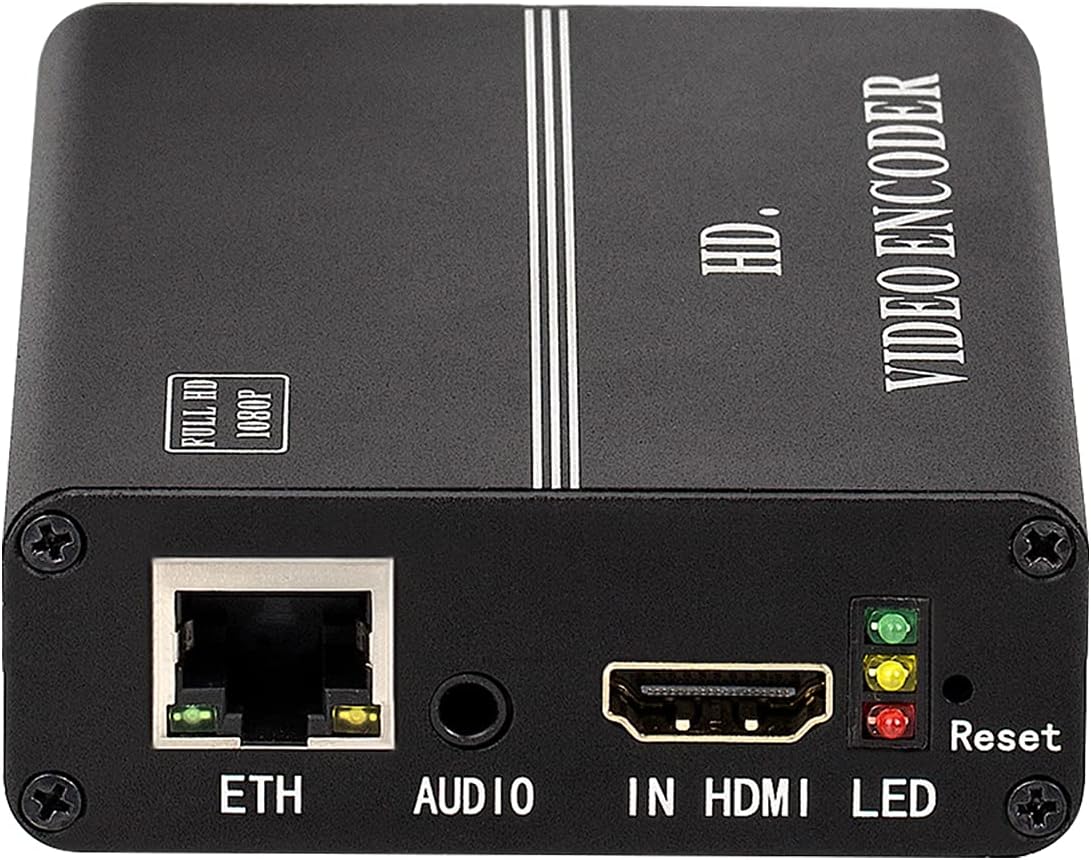

H.264 HDMI Encoder Video Encoder IPTV Encoder LAN 1080P@30 fps Support SRT RTMP RTSP RTMPS HLS HTTP UDP Multicast Unicast O4828
Sale price
$19.99
Regular price $93.08
Skip to product information
☛ INPUT:1 Channel HDMI input, 1920*1080 60/50/30/25 FPS, 1680*1056,1280*720, 1024*576, 960*540, 850*480, 720*576, 720*540, 720*480, 720*404, 704*576, 640*480, 640*360
☛ OUTPUT:1 channel IP signal output- SRT RTMP RTMPS HTTP, RTSP over TCP/UDP, HLS, UDP(IGMPv2) multicast, unicast. 2*H.264 TS streams output(push/pull), alternative Audio/Video/A&V output for RTSP and RTMP.
☛ SMART ENCODING:The function for smooth stream/bitrate, with this arithmetic, the encoder will automatically detect the video fluctuation, then automatically modify the video bit and to make sure the video quality and completeness.
☛ STRONGER COMPATIBILITY:Compatible with DVB-C QAM, H.264 encoding (high (Level 4.2)/main (Level 4.2)/baseline profile ).HDMI 1.4 HDCP supported, it will automatically detecting and enabling the HDCP function if required.
☛ SERVICE AND SUPPORT:One year warranty, SDK/API, IP finder, Video management platform, LiveX-IOS Android APP, Solution analyzing, we supply customization service includes WEB GUI, laser/color printing, protocol, physical interfaces!
H.264 HDMI Encoder Video Encoder IPTV Encoder LAN 1080P@30 fps Support SRT RTMP RTSP RTMPS HLS HTTP UDP Multicast Unicast O4828
Sale price
$19.99
Regular price $93.08
Shipping calculated at checkout.
☛ INPUT:1 Channel HDMI input, 1920*1080 60/50/30/25 FPS, 1680*1056,1280*720, 1024*576, 960*540, 850*480, 720*576, 720*540, 720*480, 720*404, 704*576, 640*480, 640*360
☛ OUTPUT:1 channel IP signal output- SRT RTMP RTMPS HTTP, RTSP over TCP/UDP, HLS, UDP(IGMPv2) multicast, unicast. 2*H.264 TS streams output(push/pull), alternative Audio/Video/A&V output for RTSP and RTMP.
☛ SMART ENCODING:The function for smooth stream/bitrate, with this arithmetic, the encoder will automatically detect the video fluctuation, then automatically modify the video bit and to make sure the video quality and completeness.
☛ STRONGER COMPATIBILITY:Compatible with DVB-C QAM, H.264 encoding (high (Level 4.2)/main (Level 4.2)/baseline profile ).HDMI 1.4 HDCP supported, it will automatically detecting and enabling the HDCP function if required.
☛ SERVICE AND SUPPORT:One year warranty, SDK/API, IP finder, Video management platform, LiveX-IOS Android APP, Solution analyzing, we supply customization service includes WEB GUI, laser/color printing, protocol, physical interfaces!
| HAH-101 | HAH-101W | HAH-101M | HAH-101AV | HAH-101V | H8110H | |
|---|---|---|---|---|---|---|
| Input | 1* HDMI , 1* Audio | 1* HDMI , 1* Audio | 1* HDMI , 1* Audio | 1* HDMI, 1* CVBS | 1* HDMI, 1* CVBS, 1* VGA, 1* YPBPR | 1* HDMI , 1* Audio |
| Output | 1*IP | 1*IP | 1*IP | 1*IP | 1*IP | 1*IP, 1* HDMI |
| Video Encoding | H.264/ AVC | H.264/ AVC | H.264/ AVC | H.264/ AVC | H.264/ AVC | H.264/ AVC |
| With loop Through | ✓ | |||||
| With WIFI | ✓ | ✓ | ||||
| Built in Battery | ✓ | |||||
| Protocol Support | HTTP/ HLS/ RTSP over UDP TCP/ RTMP/ RTMPS UDP Unicast Multicast/ RTP/ SRT | HTTP/ HLS/ RTSP over UDP TCP/ RTMP/ RTMPS UDP Unicast Multicast/ RTP/ SRT | HTTP/ HLS/ RTSP over UDP TCP/ RTMP/ RTMPS UDP Unicast Multicast/ RTP/ SRT | HTTP/ HLS/ RTSP over UDP TCP/ RTMP/ RTMPS UDP Unicast Multicast/ RTP/ SRT | HTTP/ HLS/ RTSP over UDP TCP/ RTMP/ RTMPS UDP Unicast Multicast/ RTP/ SRT | HTTP/ HLS/ RTSP over UDP TCP/ RTMP/ RTMPS UDP Unicast Multicast/ RTP/ SRT |
| 1080P@60FPS | Default 30fps, 60fps is optional | Default 30fps, 60fps is optional | Default 30fps, 60fps is optional | Default 30fps, 60fps is optional | Default 30fps, 60fps is optional | Default 30fps, 60fps is optional |
